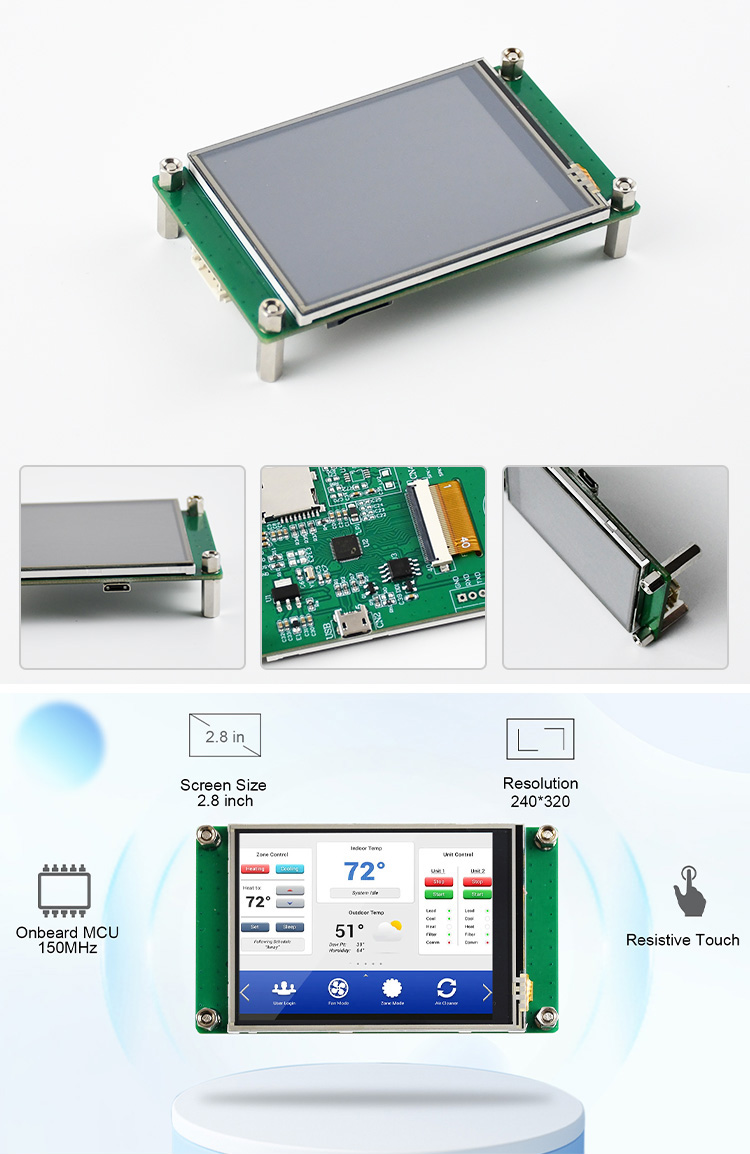

    Polcd 2.8 Inch 240*320 HMI Embedded TFT LCD Module Controlled by any MCU Serial Port Screen

    Ask Lasest Price
    Brand Name : Polcd
    Model Number : P028A1001
    Certification : RoHS, ISO9001
    Price : Please contact us for latest price
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,000 piece per week
    Delivery Time : 1~7 working days
    • Product Details
    • Company Profile

    Polcd 2.8 Inch 240*320 HMI Embedded TFT LCD Module Controlled by any MCU Serial Port Screen

    Parameter

    Product nameSerial Port Screen
    ModelP028A1001
    Screen Size2.8 inch
    Number of Pixel240x320
    Touch ScreenResistance Touch
    Display area43.2(H)x57.6(V)mm
    Back-lightLED Side-light type
    Operation Temperature-20~70℃
    Storage Temperature-30~80℃

    Function introduction:

    1. Support Uart serial port screen communication, Boudrate up to 115,200bps.

    2. Built-in high-efficiency 32Bit MCU (M4 Core) to analyze serial port screen commands, with a main frequency of up to 150MHz.

    3. Contains 512KB Flash (508KB available to users) and 256KB SRAM.

    4. Can support SPI serial port/8bit parallel port MCU screen.

    5. Supports external SPI Flash, which can store pictures, animations, fonts and other information.

    6. Supports picture display, GIF animation display, loop picture display, startup screen display, progress bar display, and text string display command functions.

    7. Supports drawing command functions such as points, lines, circles, triangles, and rectangles.

    8. Support QR code generator function.

    9. Support UartTFT_Tool and UI_Editor development software.

    10.Support resistive/capacitive touch screen.

    11. Support USB update program and SPI Flash data update function.

    12. Provide PWM/GPIO output.

    13. Provide DAC audio output.

    14. Provide 2 sets of SPI/SCI interfaces.

    15. Built-in RTC clock and clock signal source.

    16. Working voltage: 3.0~3.6V.

    17.QFN-48Pin (6mm*6mm).
