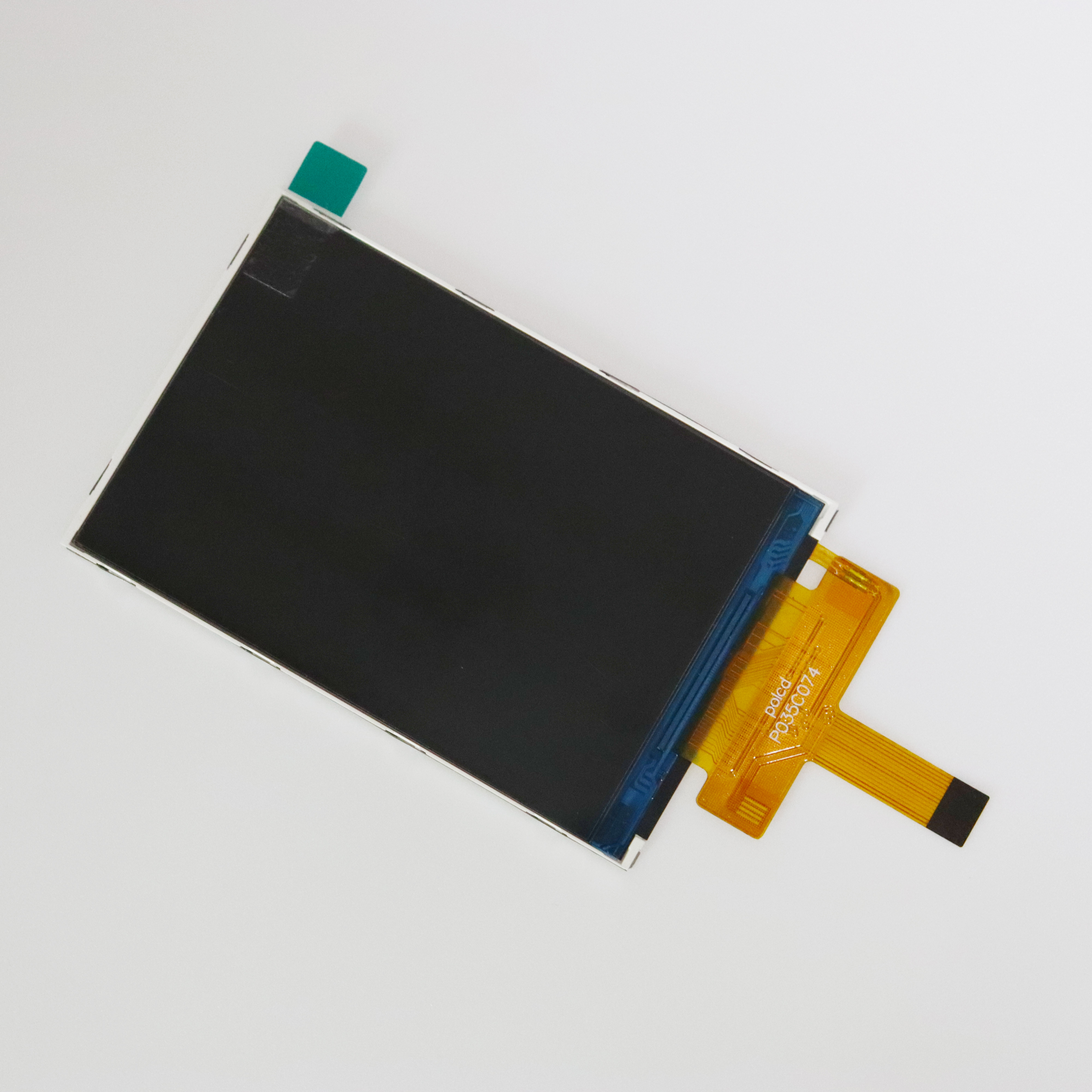

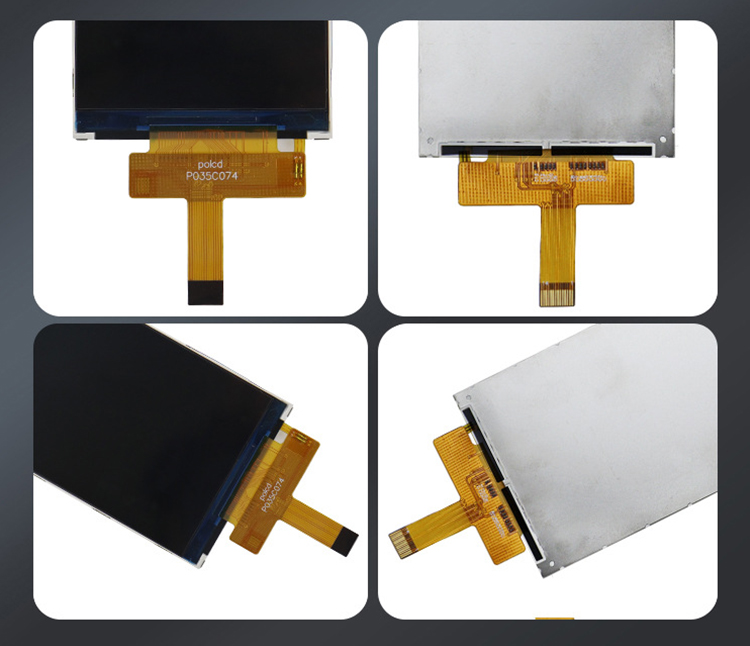

Camera 4Line SPI Interface TFT LCD Display Polcd 3.5 Inch Touch Panel 320x480

Shenzhen P&O Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Camera 4Line SPI Interface TFT LCD Display Polcd 3.5 Inch Touch Panel 320x480 from wholesalers

    Buy cheap Camera 4Line SPI Interface TFT LCD Display Polcd 3.5 Inch Touch Panel 320x480 from wholesalers
    • Buy cheap Camera 4Line SPI Interface TFT LCD Display Polcd 3.5 Inch Touch Panel 320x480 from wholesalers
    • Buy cheap Camera 4Line SPI Interface TFT LCD Display Polcd 3.5 Inch Touch Panel 320x480 from wholesalers
    • Buy cheap Camera 4Line SPI Interface TFT LCD Display Polcd 3.5 Inch Touch Panel 320x480 from wholesalers

    Camera 4Line SPI Interface TFT LCD Display Polcd 3.5 Inch Touch Panel 320x480

    Ask Lasest Price
    Brand Name : Polcd
    Model Number : P035C074
    Certification : RoHS, ISO9001
    Price : Please contact us for latest price
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,000 piece per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Camera 4Line SPI Interface TFT LCD Display Polcd 3.5 Inch Touch Panel 320x480


    ItemSpecificationUnit
    Screen Size3.5 inch

    Diagonal

    Number of Pixel320RGB(H)x480(V)Pixels
    Display area48.96(H)x73.44(V)mm
    Pixel pitch0.153(H)x0.153(V)mm
    Outline Dimension54.48x84.71x2.20mm
    Pixel arrangementRGB Vertical Stripe--
    Display modeNormally White--
    Viewing Direction(eye)12 0'CLOCK--
    Gray inversion direction--
    Display Color262K--
    Luminance(cd/m2)400nit
    Contrast Ratio500:1--
    Surface treatment----
    Interface4Line SPI
    Back-lightLED Side-light type--
    Drive ICILI9488
    Operation Temperature-20~70
    Storage Temperature-30~80
    Weight--g
