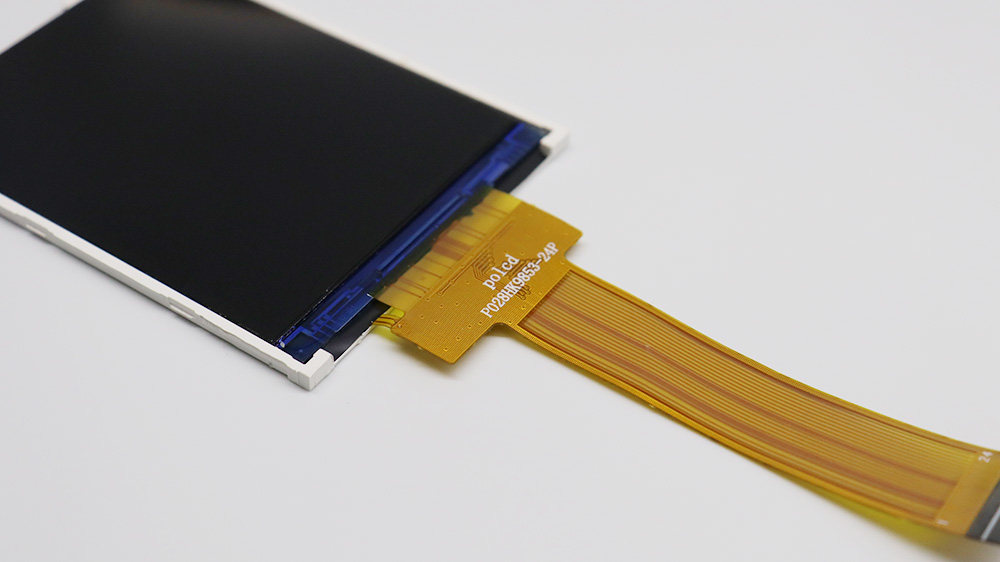

    Polcd 2.8 Inch 240*320 Resolution 50pin Tft Lcd Screen Display Module 2.8" Small Size Lcd Panel

    Ask Lasest Price
    Brand Name : Polcd
    Model Number : P028HK9853-24P
    Certification : RoHS, ISO9001
    Price : Please contact us for latest price
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,000 piece per week
    Delivery Time : 1~7 working days
    • Product Details
    • Company Profile

    Polcd 2.8 Inch 240*320 Resolution 50pin Tft Lcd Screen Display Module 2.8" Small Size Lcd Panel

    Parameter:

    ModelP028HK9853-24P
    Screen Size2.8 inch
    Number of Pixel240RGB(H)x320(V)
    Display area43.20(H)x57.60(V)mm
    Pixel pitch0.180(H)x0.180(V)mm
    Pins24 pins
    Outline Dimension50.00x69.20x2.30mm
    Pixel arrangementRGB Vertical Stripe
    Display modeNormally black
    Viewing Direction(eye)ALL
    Gray inversion direction--
    Display Color262K
    Luminance(cd/m2)200 nit
    Contrast Ratio1200:1
    Surface treatment--
    Interface4-line SPI
    Back-lightLED Side-light type
    Drive ICJD9853
    Operation Temperature-20~70℃
    Storage Temperature-30~80℃
