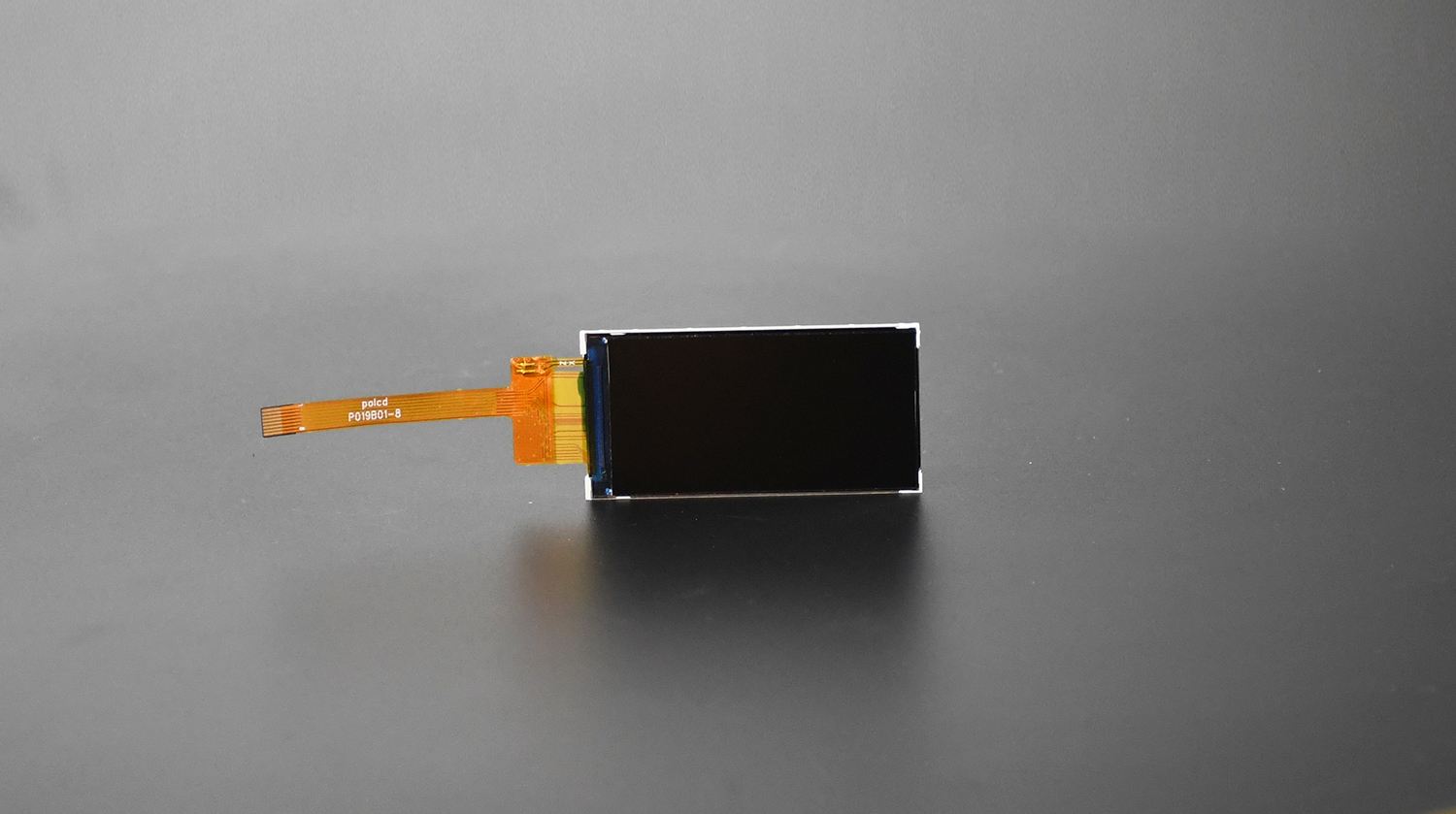

    Polcd 1.9 Inch 170*320 ST7789P3-G6 SPI Bar TFT LCD Module Screen 8 Pin IPS Vertical LCM Display

    Ask Lasest Price
    Brand Name : Polcd
    Model Number : P019B01-8
    Certification : RoHS, ISO9001
    Price : Please contact us for latest price
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,000 piece per week
    Delivery Time : 1~7 working days
    • Product Details
    • Company Profile

    Polcd 1.9 Inch 170*320 ST7789P3-G6 SPI Bar TFT LCD Module Screen 8 Pin IPS Vertical LCM Display

    Parameter:

    ModelP019B01-8
    Screen Size1.9 inch
    Number of Pixel170RGB(H)x320(V)
    Display area22.7(H)x42.72(V)mm
    Pixel pitch133.5(H)x133.5(V)um
    Pins8 pins
    Outline Dimension25.8x50.12x2.12±0.1mm
    Pixel arrangementRGB Vertical Stripe
    Display modeNormally Black
    Viewing Direction(eye)ALL
    Display Color262K
    Luminance(cd/m2)600 nit
    Contrast Ratio800:1
    Interface4W SPI
    Back-lightLED Side-light type
    Drive ICST7789P3-G6
    Operation Temperature-20~70
    Storage Temperature-30~80
