    Polcd 3.45 Inch 3.5 Inch 320x240 Square Screen LQ035NC111 Spi Rgb 54 pin TFT Display Module

    Ask Lasest Price
    Brand Name : Polcd
    Model Number : LQ035NC111
    Certification : RoHS, ISO9001
    Price : Please contact us for latest price
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,000 piece per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Polcd 3.45 Inch 3.5 Inch 320x240 Square Screen LQ035NC111 Spi Rgb 54 pin TFT Display Module

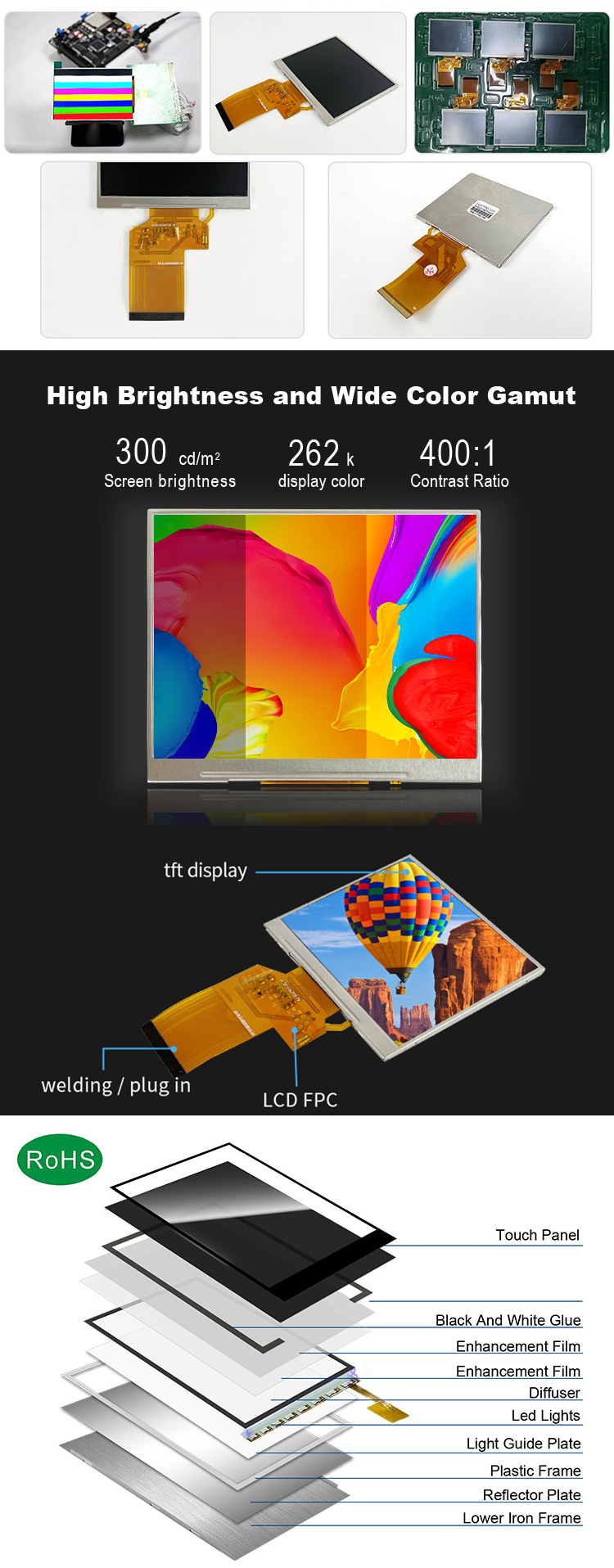

    Polcd LQ035NC111 3.5 inch Original TFT Panel LCD Display Module 320x240 Resolution Square LCD Screen


    TFT Display Description:

    A 3.5 inch TFT LCD with RGB interface and 6 o'clock direction viewing angle provides clear and accurate image display from below, making it ideal for applications such as car navigation systems and industrial control panels.


    Parameter:

    Product nameTFT LCD
    Diagonal size3.5 inch
    ModelLQ035NC111
    TypeTFT-LCD, liquid crystal module
    Resolution320(RGB)x240 QVGA 115PPI
    Display area70.08(H)x52.56(V) mm ;
    Open area73.03(H)x55.50(V) mm
    Display brightness300 cd/m2 (Typ.)
    Pixel arrangementRGB vertical bars
    Physical dimension76.9(H)x63.9(V) x3.46(T) mm
    Surface treatmentHaze (Haze 20%)
    Contrast400:1 (Typ.) (Transmission)
    Response time10/15 (Typ.)(Tr/Td) ms
    Display modeTN, normally white display, transmissive
    Recommended viewing angle6 o'clock
    Viewing angle60/60/50/55 (Typ.) (CR210)
    Color support16.7M , 60% NTSC
    Weight30.0g (Typ.)
    Frame rate60Hz
    Interface Type54 pins Digital RGB (8/24-bit) + SPI, CCIR601/656, FPC
    Voltage supply3.3V (Typ.)
    Application EnvironmentOperating temperature: -20~ 70 °C; Storage temperature: -30~ 80 °C
    Type of light sourceWLED [6S1P], 10K hours, no driver
    Touch technologyNo; supports custom touch

    Advantages

    A 3.5 inch TFT LCD with RGB interface and 6 o'clock direction viewing angle has several product advantages. Firstly, it offers a high resolution and excellent color performance, providing users with a clear and vibrant display. Secondly, its RGB interface enables easy integration with various display controllers, making it compatible with a wide range of devices. Thirdly, its 6 o'clock direction viewing angle ensures clear and accurate image display from below, making it ideal for applications such as car navigation systems and industrial control panels. Additionally, it is a low-power consumption display, making it ideal for use in portable devices with limited battery life. Finally, its compact size and lightweight design make it easy to integrate into different applications, making it an attractive display option for manufacturers.
